Task Trends

The Task Trends report visualizes the proportional distribution of broad task outcomes (broad outcome categories) for a given task on a per channel basis trending over time.

Note: The visualizations in the Task Trends report do not populate with data until you select a task in the Task Name filter.

In addition to the use of report filters, Nuance Insights allows you to manipulate displayed data through several other means in order to better visualize information. Select from the following to learn more:

Visualization

Task Trends graph

You can view the data for this section either as a graphical visualization or in a text-only table. Both formats visualize the relative weighting of broad outcome categories relative to all other broad outcomes for a given channel and trended over time. In the graph, each bar segment's length represents an individual category's weighting within a given channel at a given data point. The table lists broad category weightings, trended over time, for a given channel as percent values.

Note: To see the data from the graphical visualization displayed in an alternative, textual way, click Show Table. To toggle back to the graphical view, click Show Graph.

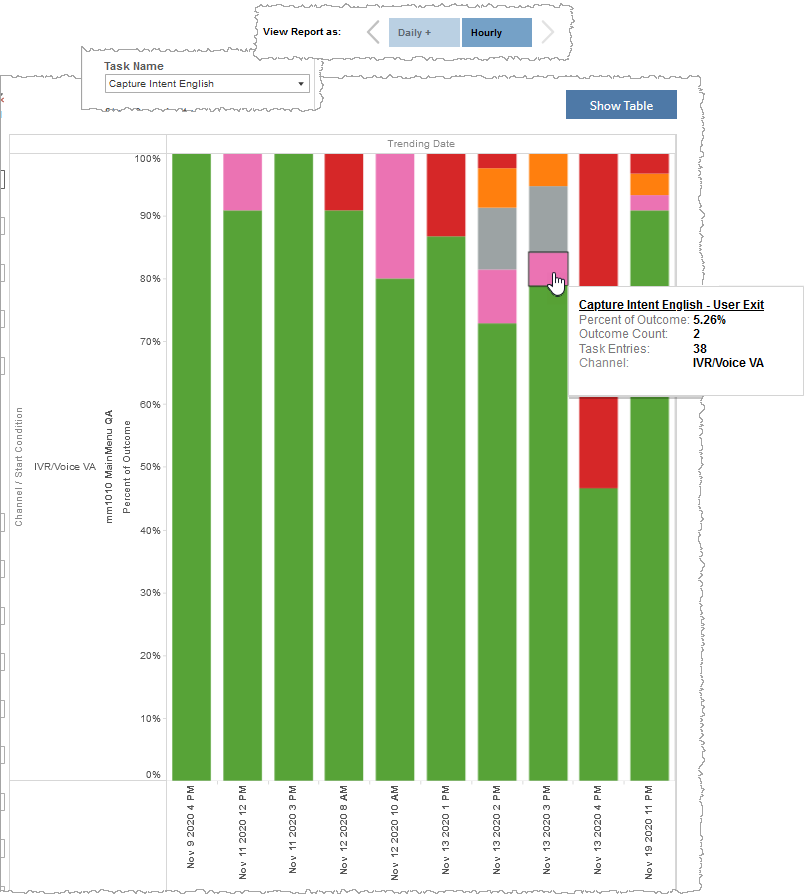

In the example, below, Capture Intent English is the selected task in the Task Name filter and the report draws upon hourly summarization data. In the IVR/Voice VA channel, on November 13th, 2020, between 3 and 4pm, the data shows that there were 38 task entries for the selected task in this channel. The User Exit broad outcome category (shown as the pink bar segment in the screen capture) has 2 counts representing 5.26% of all broad outcomes for this task within this hour.

Tip: Pay attention to tasks whose outcomes are not improving over time.

Stacked bar graph shows percent of outcome over time for specific channel

Filters

Increase the specificity of your view's reporting by applying filters to the data.

Notes:
Some filters allow you to choose whether the visualization data containing specified filter values or else excludes this subset of data.

Clicking Include values displays only those data possessing the selected values. All other data are hidden from the visualization.

By contrast, clicking Exclude values displays only those data that do not possess the selected values.

Toggle specifying whether to include or exclude values indicated in the filter

Date Range

The Date Range filter is a slider with two moveable sides. By narrowing the date range, you display only data falling within the range.

Visualization of the Date Range slider

In addition to the slider, the filter allows you to specify start and end points to the range by time of day as well as by date by clicking the Start and End regions, clicking a second time on the time of day, and then manually entering a new time of day.

Visualization of clickable regions in Date Range slider to specify start and end times with date picker

Visualization of time-of-day region in one of Date Range slider's date pickers

To select a date with the date picker, click the Start region to pick a date from the date picker widget. Do the same with the End region.

Visualization of calendar region in one of Date Range slider's date pickers

Date Granularity

The Date Granularity filter allows you to adjust the reported data granularity described by the trend lines. Drag the slider horizontally to adjust the granularity of reported data. Alternatively, you can use the left  and right  arrow buttons to move the slider incrementally.

Visualization of the Date Granularity slider

Note: If you choose to draw from hourly instead of daily summarization data, the Date Granularity filter will no longer be visible.

Task Name

The Task Name filter allows you to narrow the displayed data in your view by including only those tasks bearing the selected task name.

Start Granularity

For dimensions that have distinct start conditions associated with them, you may choose to visualize your data as a graph for each start condition or else aggregate them into one graph. That is, if there are several distinct start conditions (for example Member and Provider), selecting Each Start Condition in the Start Granularity filter produces a visualization of the trending lines for each of Member and Provider on two separate graphs.

Task Version

The Task Version filter allows you to narrow the displayed data in your view by including task data associated with all, several, or only one task version.

A task version is the number identifying the revision of a task definition. Task definitions may change over time for a number of reasons. One example is if you find there are several navigational exits that are categorized as Other. In this case, you may want to recategorize them with more meaningful labels which, in turn, may warrant an update to your task definitions. Another example is if the application itself is updated such that there are now more states or more ways in which scenarios are handled. Again, in this case, you may want to revisit your task definitions with a new revision to correctly capture successes and failures.

The Task Version filter is an auto-populated filter based on data made available in the AFT file.

  1. Click the Task Version field.

  2. Select the All checkbox to include data associated with all task versions.

    If there are many task versions available and you would like to select one or just a few of them, clear the All checkbox and then select each task version you would like to include in your query.

    Visualization of Task Version multi-selection filter

Task Attempt

The Task Attempt filter allows you to narrow the displayed data in your view by discriminately including task data associated with all, some, or a single task attempt.

A task attempt is identified by an index number (for example, Attempt 1 or Attempt 2) and corresponds to a task being started. Notably, a task attempt does not necessarily end with a task completion. It is only necessary for the task to begin for it to be an attempt.

When filtering for task attempts, you may select one, several, or all task attempts:

  • Selecting only one task attempt (attempt 3, for example) is a request to exclude all task data except data associated with a third attempt.

  • Broadening the filter to include several task attempts requests the reporting of data associated with the selected attempts, but excluding all other data.

    For example, selecting attempts 3, 7, and 9 in the Task Attempt filter requests that only task data associated with the third, seventh, and ninth attempts of the given task(s) will be reported.

  • Selecting all task attempts requests the reporting of task data associated with any and all task attempts. This filter parameter is the same thing as having no Task Attempt filter at all.

The Task Attempt filter is an auto-populated filter based on data made available in the AFT file.

Channel

By choosing one or more channels from the list, you refine your displayed data-set by including data from only those channels matching the selection.

  • Select all available values by selecting All.
  • Select only one value by first clearing the All checkbox, and then selecting the value whose data you would like to see visualized.

  • Select several values by doing one of the following:

    • Clear the All checkbox, and then select the values whose data you would like to see visualized.
    • Select the All checkbox and then clear values whose data you would NOT like to see visualized.

Broad Category highlight tool

The broad outcome categories are :

  • Max Attempts - The percentage of instances of a given task, that ended because the incidence of one or more error types has reached a programmatically set limit on the number of times the error may occur.

  • System Error - Any application/system-based errors in the application.
  • DB Error - An error encountered during a database lookup.
  • Other - The percentage of tasks not falling into other categories of outcomes.

  • Transfer Request - The percentage of instances of a given task, in which a user requests an agent regardless of whether a transfer subsequently is completed by the application.

    Note: An Agent Request Transfer (not depicted but available through customization) filters the dataset further by including only those tasks with an agent request that actually ended with a successful transfer to an agent. Through customization, you may or may not be able to use this as a category, depending on whether the data indicating whether a transfer occurred is present in the dataset.

  • Business Rule - The percentage of instances of a given task, in which a business rule was triggered. A business rule is defined, programmatically, to anticipate situations in which a task's completion is prevented, and then to effect a graceful course of actions by the application (possibly but not necessarily ending with a transfer to an agent).

    Note: A Business Rule Transfer (not depicted but available through customization) filters the dataset further by including only those tasks that ended due to a business rule and that actually ended with a successful transfer to an agent. Through customization, you may or may not be able to use this as a category, depending on whether the data indicating whether a transfer occurred is present in the dataset.

  • User Exit - A termination of the conversation initiated by the user.
  • Application Exit - A termination of the conversation initiated by the application.
  • Diversion - The user chooses to remain in the application but to not complete the task.
  • Success - The rate of successful completion of a task, as a percentage of task starts that ended with a successful completion.

Use this tool to highlight data belonging to one or several specified broad categories of task outcomes.

  1. In the Broad Category highlight tool, mouse over the word Broad Category to see the highlighter icon to the right.

  2. Click the highlighter icon to toggle the highlighter on ( ) to highlight outcomes, or off ( ) to remove highlighting.

    Notes:
    • To make multiple selections, hold down the ctrl key while individually clicking desired category.
    • If you made a highlighter selection of categories and then toggled the highlighter function off, the last selection is preserved when you once again toggle the highlighter back on.

Custom filters

This report accommodates customizable filters.

Customizable filters narrow the scope of the reported dataset by including or excluding data with identifiable attributes. These attributes may be about the conversation itself or about an event that may have happened during the conversation.

For more information about how to add customized filters to your view, contact your Nuance Professional Services representative.

Note: If you would like to modify this or any report, Nuance Communications, Inc. recommends you contact Nuance Professional Services.
